Category: Yarn Testing Instruments

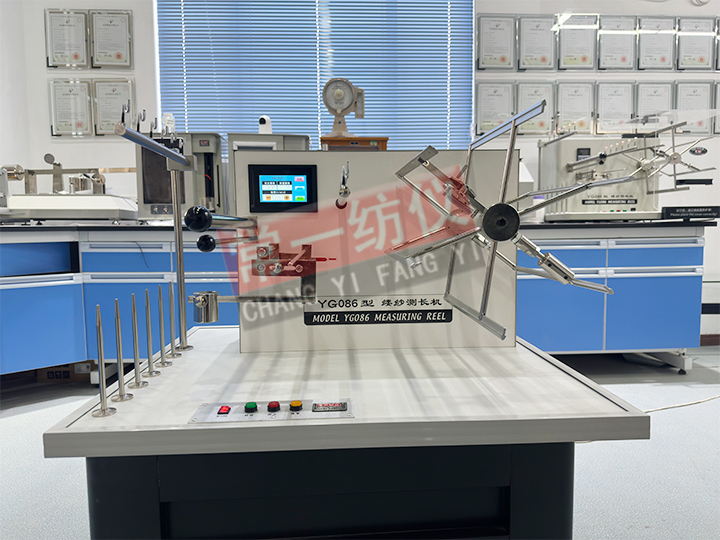

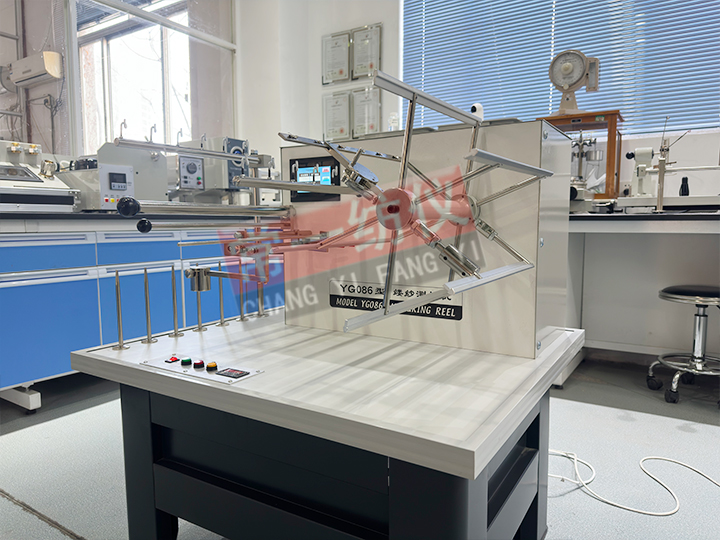

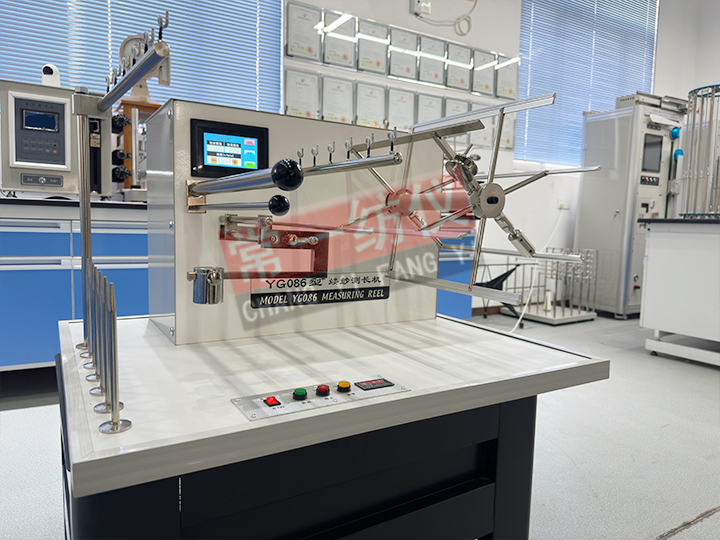

Introduction: Purpose of the InstrumentThis instrument is used to determine the linear density (or British count) of various yarns for testing yarn strength, and is also suitable for determining the linear density of textured filaments made from synthetic fibers.Ap…
This instrument is used to determine the linear density (or British count) of various yarns for testing yarn strength, and is also suitable for determining the linear density of textured filaments made from synthetic fibers.
GB/T 4743 “Determination of Yarn Titer—Twist Method”;
GB/T 14343 “Test Method for Titer of Synthetic Filament Yarns”;
GB/T 6838 “Test Methods for Sewing Threads”;
ISO 2060 “Yarn in Cones—Determination of Titer (Mass per Unit Length)—Twist Method”
FZ/T 01035
FZ/T 98006-2009
ASTM D 1907 “Test Method for Yarn Count—Twist Method”
ASTM D 2260
DIN 53830
1. Number of yarn cones tested simultaneously: 6, 8, 9, 10, 12 (user-selectable);
2. Cone spacing: 65 mm (for 6 cones)
3. Yarn frame circumference: 1000 ± 1 mm
4. Yarn frame speed: 0–300 rpm
5. Number of yarn loops: 1–9999
6. Yarn winding reciprocating width: 35 mm
7. Single-yarn winding tension range: 0–100 cN
8. Power supply: 220 V, 50 Hz
9. Dimensions: 780 × 660 × 480 mm
10. Instrument weight: 70 kg
