Introduction: Instrument PurposeThis instrument employs microcontroller-based microcomputer control to achieve intelligent operation of the crimp elasticity tester. The measurement system applies load via a tension loader, while displacement length is counted by th…

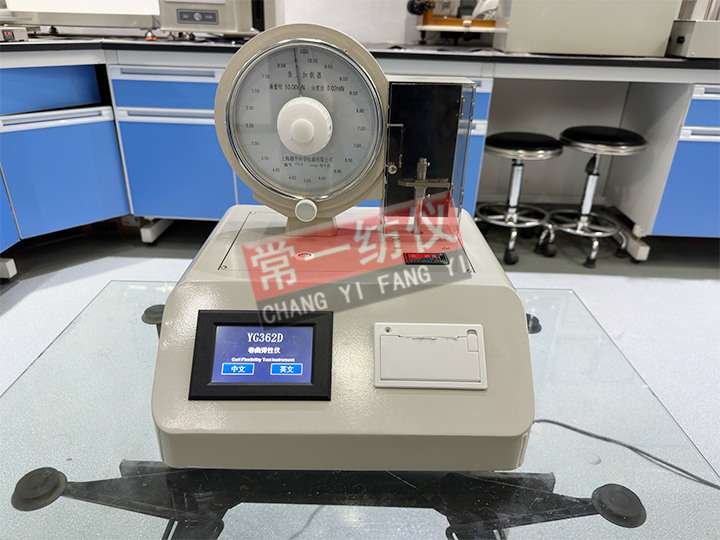

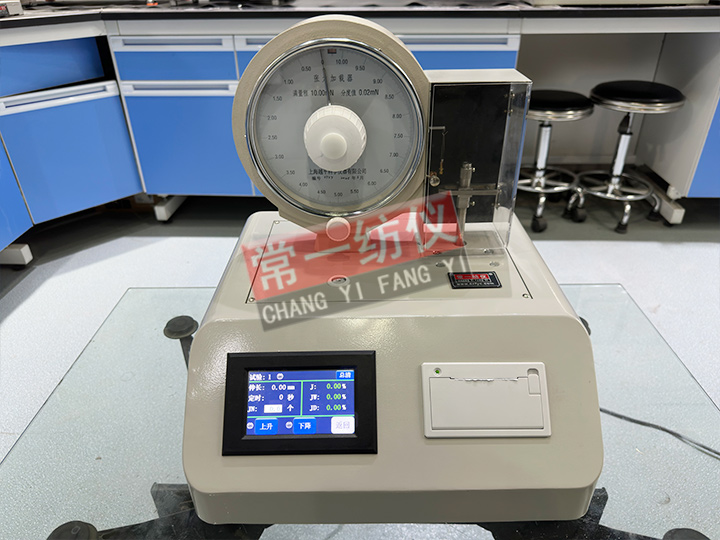

This instrument employs microcontroller-based microcomputer control to achieve intelligent operation of the crimp elasticity tester. The measurement system applies load via a tension loader, while displacement length is counted by the microcontroller using pulse signals from a stepper motor. The instrument automatically measures, displays, and prints the crimp, crimp elasticity, crimp recovery rate, and their statistical values for fibers with a fineness of 1 to 22 dtex. Touchscreen control ensures simple and convenient operation.
GB/T14338-2022 “Test Methods for Crimp Properties of Chemical Fibers - Short Fibers”
1. Load Range of Tension Loader:
Load Range (mN) Graduation (mN) Estimated Reading (mN)
0–5.00 0.01 0.005
0～10.00 0.02 0.01
0～25.00 0.05 0.02
2. Initial Length: 20mm
3. Lower Holder Stroke: ≥30mm
4. Minimum displacement indication: 0.01mm
5. Displacement reading error: ≤0.05mm (within 10mm range)
6. Timing intervals: 0.5, 1, 2 min
7. Power supply: AC220V, 50Hz
8. Dimensions: 460×230×460mm
