Category: Fibre Testing Instruments
Introduction: This instrument combines optical and digital imaging, computers, and software. The software enables video observation of micro-holes, measurement of irregularly shaped holes, and examination of hole profiles and surface finish. This product is easy to…

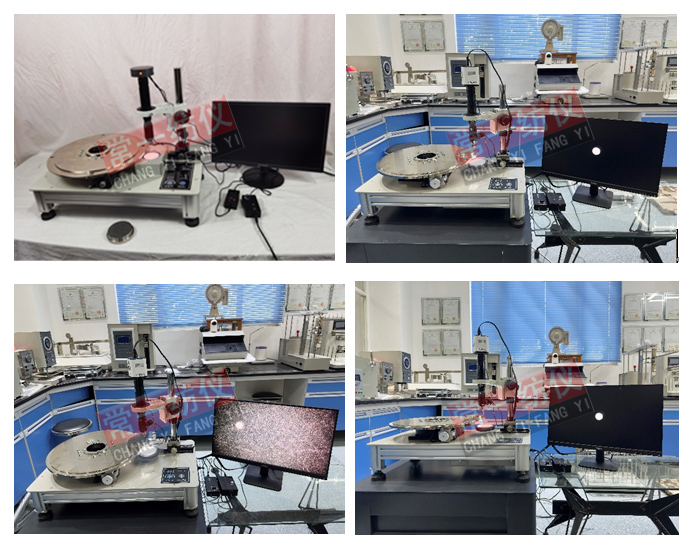

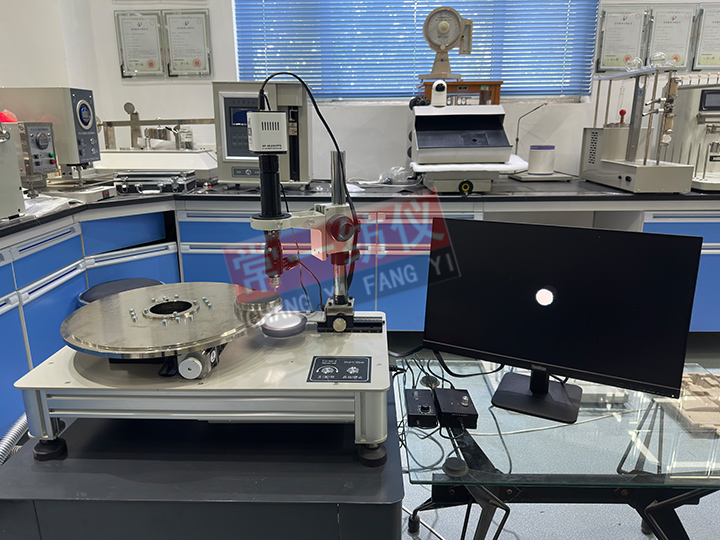

This instrument combines optical and digital imaging, computers, and software. The software enables video observation of micro-holes, measurement of irregularly shaped holes, and examination of hole profiles and surface finish. This product is easy to operate, simple to learn, efficient, and highly accurate.
The instrument boasts excellent measurement and observation performance, comes with complete accessories, is easy to operate, and is convenient to use. It is widely applied in the inspection and assembly of electronic components and small precision parts, particularly suitable for the inspection of spinnerets.
Measurement range: 600×600 mm/400×400 mm/300×300 mm (optional)
Spinneret plate hole shapes: Various shapes
Positioning method: Microscope coaxial light, adjustable
Displacement dimensions: Horizontal 150 mm/250 mm/350 mm/600 mm (optional)
Digital Camera: 8-megapixel (4K)/3-megapixel (optional)
Optical Magnification: 1000x
Measurement Accuracy: 0.0001mm/0.001mm (optional)
Basic functions: Auto focus/Electronic zoom in/out/Mirror flip/Wide dynamic range/White balance/Suppression of strong light/Two- or four-screen comparison/Photo capture/Automatic edge detection measurement/Storage
Workbench rotation method: Electric
Dimensions: L800 x W500 x H500mm
Power supply: AC220V 50Hz 100W
