Category: Fibre Testing Instruments

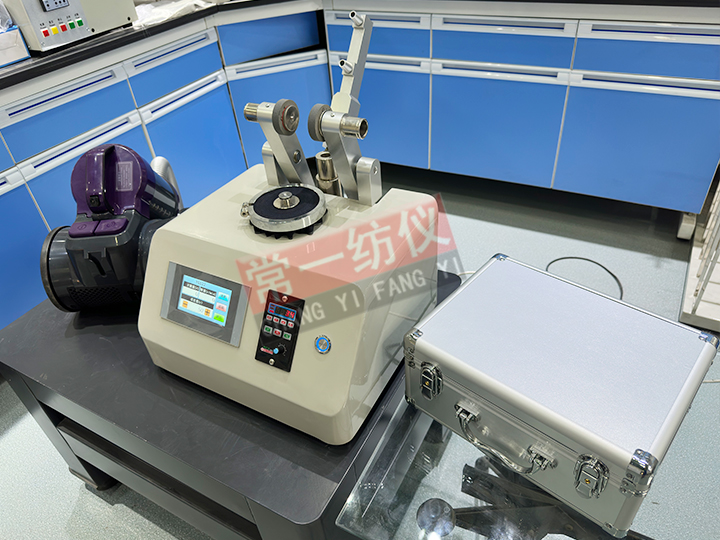

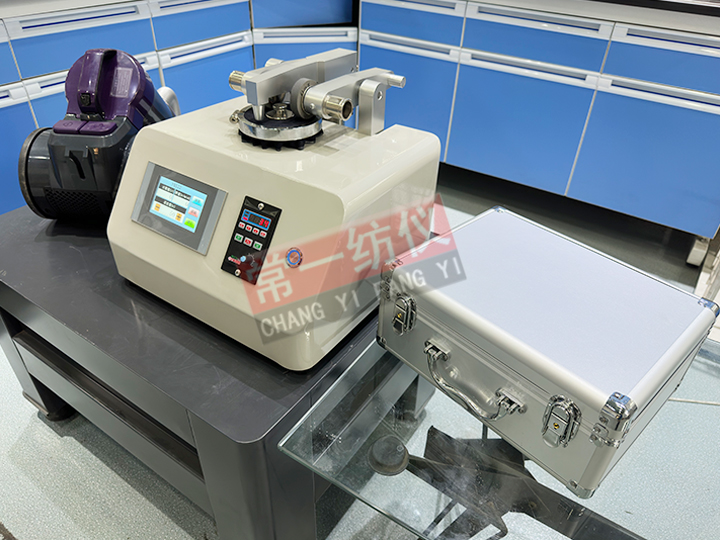

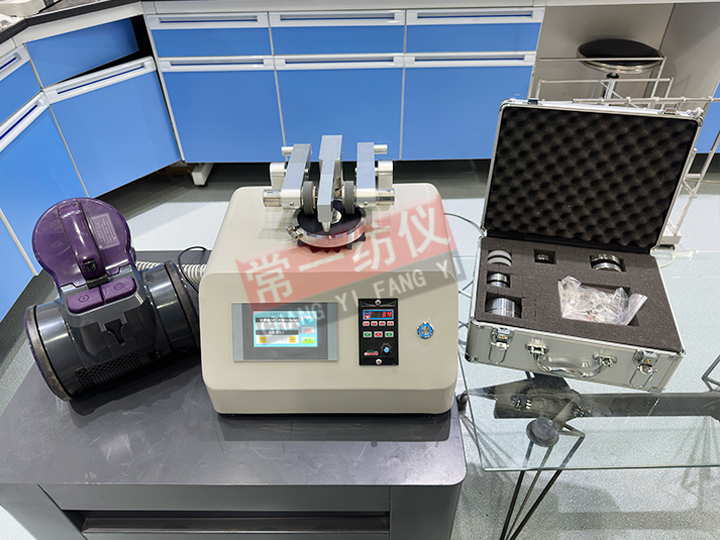

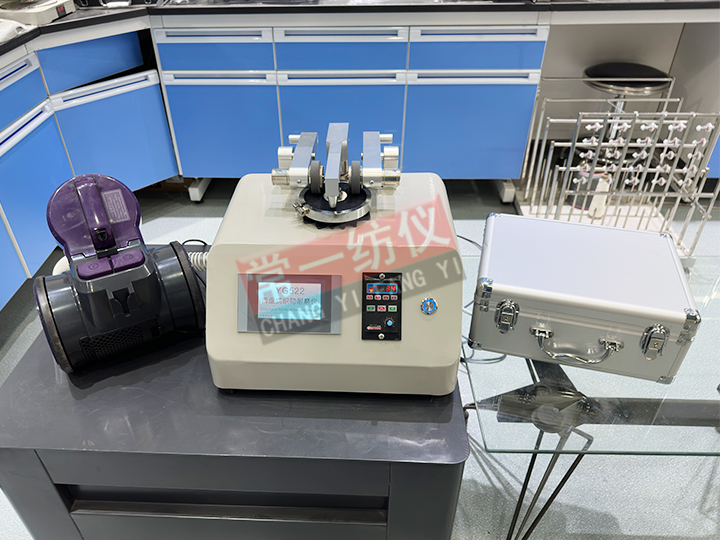

Introduction: Instrument applicationUsed for testing abrasionresistance of all fabrics, leathers, carpets,rubbers, plastic sheets and othervarious materials. Applicable standardsFZ/T01128-2014、GB/T30314-2013、IS05470-1、ASTMD3884、DIN53863.2. Main Technical Data1.…
Used for testing abrasion resistance of all fabrics, leathers, carpets,rubbers, plastic sheets and other various materials.
FZ/T01128-2014、GB/T30314-2013、IS05470-1、ASTMD3884、DIN53863.2.
1. Work disk diameter: Φ115 mm
2. Work disk speed: 70 rpm
3. Grinding wheel dimensions: Diameter Φ50 mm, thickness 13 mm
4. Counting method: Electronic counter with adjustable settings from 0 to 999,999
5. Pressure application method: Utilizes the self-weight of the pressure sleeve (250 cN) or additional weight combinations
6. Weight of weights:
Weight 1: 750 cN (calculated based on unit self-weight),
Weight 2: 250 cN,
Weight 3: 125 cN
7. Maximum sample thickness: 20 mm
8. Dust collector: Adjustable airflow
9. Maximum power consumption: 1400 W
10. Power supply: 220V ±10%, 50Hz, 60W
11. Dimensions: 520 × 370 × 360 mm (L × W × H)
12. Weight: 50 kg
