  • YG 020A series electronic fabric strength machine (mask comprehensive strength machine)

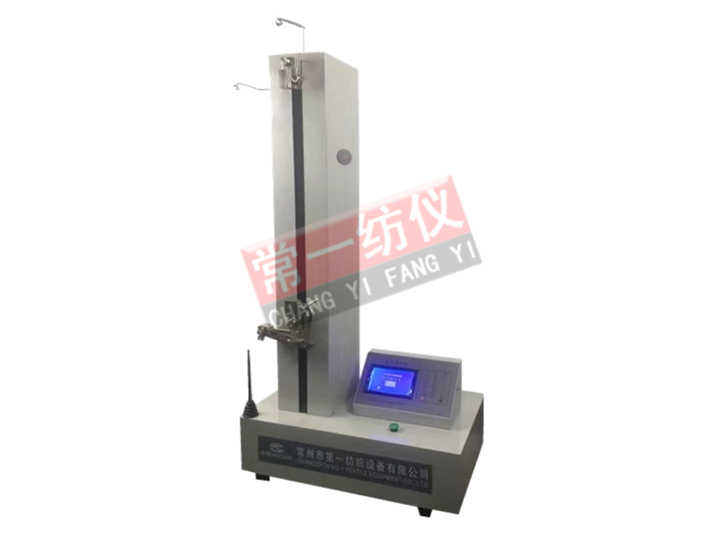

YG 020A series electronic fabric strength machine (mask comprehensive strength machine)

Category: Hygiene and protection test equipment

Introduction: Applicable scopeUsed for testing the mechanical properties of various textiles, including stretching, tearing, constant elongation, constant load, elasticity, seam slip, peeling, etc.Related standardsExample of Material Testing Machine Applied to Text…

0086-519-86662177
0086-159-5123-7113
Details Photos

Applicable scope

Used for testing the mechanical properties of various textiles, including stretching, tearing, constant elongation, constant load, elasticity, seam slip, peeling, etc.


Related standards

Example of Material Testing Machine Applied to Textile Testing Standards
GB/T3923.1/2, FZ/T70006, FZ/T70007, FZ/T01085, GB/T13772.1/2/3, FZ/T20019, FZ/T01030, ISO, ASTM, JIS, BS, DIN, etc.


Instrument characteristics

1. High rigidity force column load frame configuration, precision preload ball screw.
2. Automatic spacing positioning function.
3. AC servo drive device, high-resolution digital closed-loop controller
4. Modular design for testing and open data management.




YG020A口罩综合强力机

Applicable scope

Used for comprehensive strength testing of products such as masks and protective clothing.


Compliant with standards

GB 19083-2010 Technical Requirements for Medical Protective Masks
YY 0469-2011 Technical Requirements for Medical and Surgical Masks
GB 2626 Respiratory protection: Self suction filter type particulate matter respirator


Instrument characteristics

1. Chinese and English menus, human-machine dialogue mode, easy to operate.
2. Convenient for quick on-site printing of test results.
3. Professional computer analysis software can achieve bidirectional operation with computers; Can perform report statistics, intuitive analysis of curve charts, etc.
4. High precision sensor, good linearity and strong stability; Stepper motor drive, ball screw drive.
