YG321D fiber specific resistance tester

Instrument Usage
This instrument is suitable for the latest GB/T14342-2015 national standard, and can measure the specific resistance of various chemical fibers.  It is one of the important instruments for determining the spinnability of chemical fibers. It has the advantages of accurate, stable, rapid, and easy to use and operate.  It is suitable for the determination of the specific resistance of chemical fibers in scientific research, fiber inspection, chemical fiber production plants and user factories and other departments.

The instrument adopts touch screen operation and automatic test device, and the test data is accurate and reliable.

Applicable Standards
GB/T14342-2015

Main Technical Data
(1) Measuring range of fiber specific resistance: (converted resistance value) 100~1014Ω, 15±0.1g for each test specimen.
(2) The basic error of the instrument: resistance ≤ 1012Ω, ± 5%; resistance > 1012Ω, ± 20%.
(3) The instrument should be used in the environment without corrosive gases and strong electromagnetic field interference.
(4) The instrument should be calibrated at a temperature of 20 ℃ ± 2 ℃, relative humidity of 65 ± 10% of the standard environmental conditions.
(5) The working power supply is AC 220±10﹪ 50Hz.
(6) The test voltage of the instrument is categorized into 1V and 100V, and the voltage deviation is less than ±3%. Measuring range when testing voltage 1V: 10Ω～107Ω; Measuring range when testing voltage 100V: 106Ω～1014Ω; range switching automatically.
(7) The instrument can work continuously for 24 hours.
(8) Industrial grade 7-inch touch screen
(9) Staple fiber and filament can be measured
(10) Test results can be queried, including resistance, volume specific resistance, mass specific resistance, power failure to retain the last test results
(11) With 8 groups of preset parameters
(12) with 10 groups of specimens of fiber density, special specimen selection of custom, and can be set to fiber density
(13) Graded calibration resistance, to ensure accuracy
(14) With test report printing function
(15) With a U disk export function, convenient for permanent storage in the computer
(16) computer file format conversion function and printing function
(17) Multi-level password privileges
(18) Volume 320×400×150 mm.
(19)Weight 12 kg.

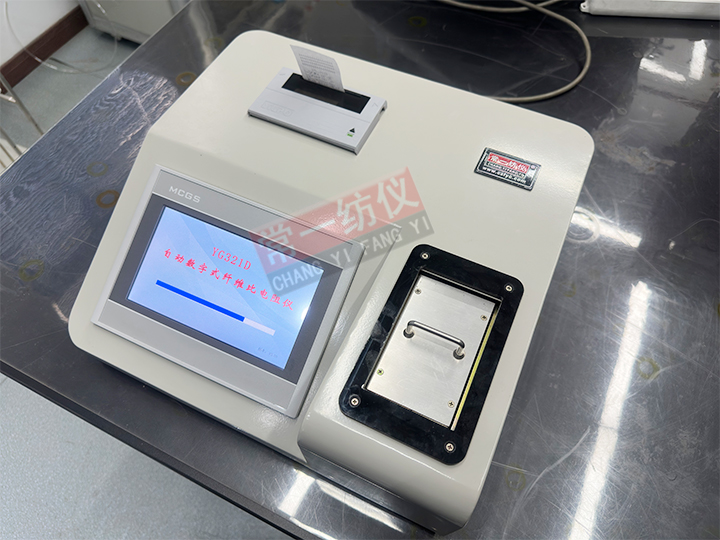

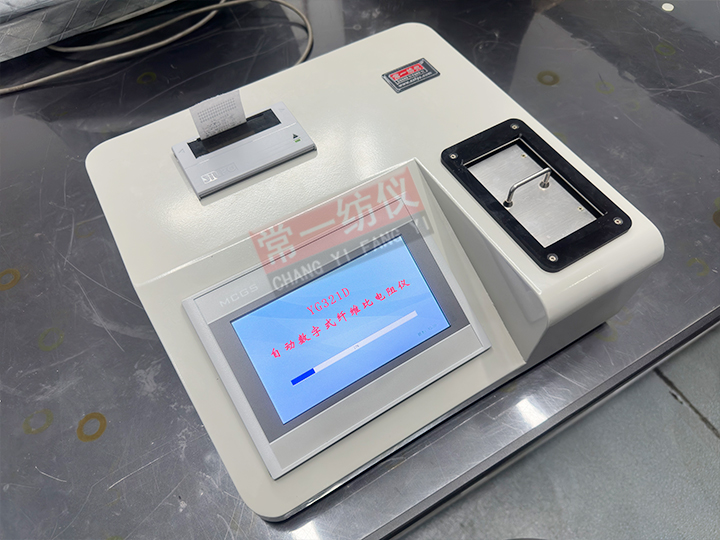

Instrument shape picture
